feat(ui): add network-vs-API error distinction and loading skeletons to StateBoundary

[claytonlin1110]

Summary

• Several routes had minimal state handling: no retry, no way to tell "we couldn't reach the server" apart from "the server answered with an error", and no content-shaped loading placeholder — app.runs.tsx in particular rendered its loading state identically to a genuinely-empty one (it showed "No runs match these filters" before the first fetch had even completed).
• useApiResource now surfaces the underlying apiFetch failure kind/status, and StateBoundary/ErrorState use it to render distinct copy + iconography for a connectivity failure (WifiOff, "Can't reach the server") vs a server-side error (AlertTriangle, generic "Couldn't load data"). StateBoundary also accepts an optional loadingSkeleton to replace the generic spinner with a content-shaped placeholder.
• Both additions are purely additive and backward-compatible — every existing StateBoundary/ErrorState/useApiResource consumer (app.analytics, app.operator, the maintainer/owner/miner/digest/commands panels, dead-letter-queue-panel, notification-readiness-card) keeps its current default copy unless it opts in to the new props.
• Wired the new primitives into app.runs.tsx, the most minimal of the routes named in the issue: replaced the old ad-hoc "Live runs are unavailable" banner with a proper StateBoundary (retry, network-aware error copy, loading skeleton), and added a RefreshMeta "last refresh" label + manual refresh button to the header.

Scope

• The PR title follows type(scope): short summary Conventional Commit format, for example fix(api): restore profile access checks.
• This PR is focused and does not mix unrelated backend, UI, MCP, docs, dependency, and deploy changes.
• This follows CONTRIBUTING.md and does not reintroduce GitHub Pages, VitePress, site/, or CNAME.
• I linked a currently open issue this PR resolves (e.g. Closes #123) — a linked open issue is required for every contributor PR.

Closes #793

Validation

• git diff --check
• npm run actionlint — ran as part of npm run test:ci, passed
• npm run db:migrations:check / db:schema-drift:check / selfhost:env-reference:check — ran as part of npm run test:ci, passed (no DB/env changes in this PR)
• npm run typecheck
• npm run test:coverage locally (this PR only touches apps/gittensory-ui/**, which Codecov's src/**-only patch rule does not gate, but the new/changed logic is covered by new and updated tests)
• npm run ui:lint
• npm run ui:typecheck
• npm run ui:test
• npm audit --audit-level=moderate
• New or changed behavior has unit/integration tests for new branches, fallback paths, and sanitizer boundaries

If any required check was skipped, explain why:

• npm run cf-typegen:check (part of npm run test:ci) fails locally on this Windows dev machine with a wrangler ENOENT — scripts/gen-cf-typegen.mjs calls execFileSync("wrangler", ...) without shell: true, which cannot invoke npm's .cmd shim on Windows (confirmed in isolation, independent of any change in this PR — reproduces with a bare execFileSync("wrangler", ["--version"]) on a clean checkout). This PR makes no Cloudflare/wrangler.jsonc changes; the check runs fine on the actual CI (Linux runners).

Safety

• No secrets, wallet details, hotkeys, coldkeys, user PATs, private keys, raw trust scores, private rankings, or private maintainer evidence are exposed.
• Public GitHub text stays sanitized, low-noise, and does not imply compensation guarantees or optimization tactics.
• Auth, cookie, CORS, GitHub App, Cloudflare, or session changes include negative-path tests. (N/A — no auth/session/CORS surface touched.)
• API/OpenAPI/MCP behavior is updated and tested where needed. (N/A — no backend/API route changes; errorKind/errorStatus are client-side fields derived from the existing apiFetch result shape.)
• UI changes use live API data or real empty/error/loading states, not production mock/demo fallbacks.
• Visible UI changes include a UI Evidence section below with JPG/JPEG or PNG screenshots arranged as organized, captioned, clickable thumbnails. SVG screenshots are not used as review evidence. Review-only screenshots or recordings are not committed to the repository.
• Public docs/changelogs are updated where needed; changelogs are only edited for release-prep PRs. (N/A.)

UI Evidence

All captured against app.runs.tsx with a mocked authenticated session and a mocked /v1/agent/runs response, so each state is genuinely reachable rather than staged.

State / title	JPG/PNG evidence
Loading (content-shaped skeleton, replaces the old spinner-only state)
Network error (new: distinct copy + WifiOff icon + retry)
HTTP error (generic copy + AlertTriangle icon + retry)
HTTP error, mobile layout (375×812)

Notes

• Scoped to the shared primitives (state-views.tsx, use-api-resource.ts) plus app.runs.tsx, the route with the most clearly minimal state handling of the ones named in the issue. app.workbench.tsx's panels (miner/playground/commands/digest) and app.operator.tsx/app.analytics.tsx already use StateBoundary; they pick up the network-vs-API distinction and skeleton support automatically the next time they're touched, with no migration required since both additions are opt-in.

[superagent-security]

Superagent didn't find any vulnerabilities or security issues in this PR.

[loopover-orb]

Warning

🟨🟨🟨🟨🟨🟨🟨🟨🟨🟨🟨🟨

⏸️ LoopOver review result - manual review recommended

_{Review updated: 2026-07-13 14:24:54 UTC}

5 files · 1 AI reviewer · no blockers · readiness 100/100 · CI green · clean

⏸️ Suggested Action - Manual Review

• AI review could not be completed: The dual-model AI review did not return a usable verdict for this change.

Review summary
This wires a real errorKind/loadingSkeleton distinction through useApiResource → StateBoundary → ErrorState, and applies it to app.runs.tsx, replacing an ad-hoc inline error banner and a loading state that was previously indistinguishable from an empty one (issue #793's core complaint). The default-preserving `??` fallback chains in StateBoundary/ErrorState are correctly ordered (explicit title/description always wins, then errorKind-derived copy, then the pre-#793 default) and are exercised by both-arm tests. The one wrinkle: app.runs.tsx always passes the raw `liveRuns.error` string as `errorDescription`, so the new friendly 'We couldn't reach the API…' network copy the PR advertises never actually surfaces on the one route wired up — only the title/icon change.

Nits — 6 non-blocking

• apps/gittensory-ui/src/routes/app.runs.tsx (StateBoundary props): `errorDescription={... liveRuns.error}` is always a truthy string when isError, so it permanently overrides ErrorState's network-aware description default — only the title/icon actually change for a network failure on this route; consider leaving `errorDescription` unset here so the friendly connectivity copy shows, or intentionally document why the raw message is preferred.
• apps/gittensory-ui/src/lib/api/use-api-resource.ts: the new `errorStatus` field is populated but never consumed by state-views.tsx or app.runs.tsx in this diff — fine to land ahead of use, but worth a one-line note on the intended consumer.
• No test directly exercises the app.runs.tsx wiring itself (isLoading/isError/errorKind derivation, RunsListSkeleton rendering) — coverage is thorough for the shared primitives but the route-level wiring is only manually reasoned about.
• apps/gittensory-ui/src/components/site/state-views.tsx: `NETWORK_ERROR_KINDS` treats `timeout` the same as `network`; confirm that's intentional product copy (a slow server vs. an unreachable one) rather than an oversight.
• Drop the hardcoded `errorDescription={liveRuns.error}` in app.runs.tsx or move the raw message into a secondary/detail line so the polished network-vs-server copy this PR adds is actually visible on the wired route.
• AI review could not be completed — The gate is held for a human reviewer rather than passed automatically; it re-evaluates on the next update.

Signal	Result	Evidence
Code review	✅ No blockers	1 reviewer
Linked issue	✅ Linked	#793
Related work	✅ No active overlap found	No same-issue or scoped active PR overlap found.
Change scope	✅ 20/20	Low review scope from cached public metadata (1 linked issue).
Validation posture	✅ 25/25	PR body includes validation/test evidence.
Contributor workload	✅ 10/10	Author activity: 462 registered-repo PR(s), 318 merged, 103 issue(s).
Contributor context	✅ Confirmed Gittensor contributor	claytonlin1110; Gittensor profile; 462 PR(s), 103 issue(s).
Gate result	⚠️ Not blocking	Advisory; not blocking this PR.
Improvement	✅ Minor	risk: clean · value: minor — Code changes are accompanied by test evidence. LLM value judgment: moderate — It's a focused, backward-compatible enhancement to shared state primitives with solid test coverage that closes a real, previously-reported UX gap in one route, but the value is narrowed by the route wiring not actually surfacing the new network-specific copy it advertises.

Review context

• Author: claytonlin1110
• Role context: outside_contributor
• Public audience mode: oss maintainer
• Lane context: Repository is configured for direct PR review.
• Public profile languages: Python, JavaScript, TypeScript, Rust
• Official Gittensor activity: 462 PR(s), 103 issue(s).
• PR-specific overlap: none found.

Contributor next steps

• Keep the PR focused and include validation evidence before maintainer review.

Signal definitions

• Related work = same linked issue, overlapping active PRs, or title/path similarity.
• Change scope = cached public metadata such as size labels, draft state, and review-burden hints.
• Validation posture = whether the PR provides enough public validation/test evidence for maintainer review.
• Contributor workload = public contributor activity and cleanup pressure, not a repo-wide quality failure.
• Contributor context = public GitHub/Gittensor identity context; non-Gittensor status is not a blocker.

[BETA] Chat with Gittensory

Ask Gittensory a question about this PR directly in a comment — grounded only in the same cached, public-safe facts shown above, never a new claim.

• @gittensory ask <question> answers contribution-quality Q&A with source citations and freshness.
• @gittensory chat <question> answers in natural prose from cached decision-pack facts via local inference (maintainer/collaborator; read-only).
• A plain-language @gittensory mention with a real question is routed to the closest matching read-only command automatically -- no exact syntax required.

Full command reference: https://gittensory.aethereal.dev/docs/gittensory-commands

Visual preview

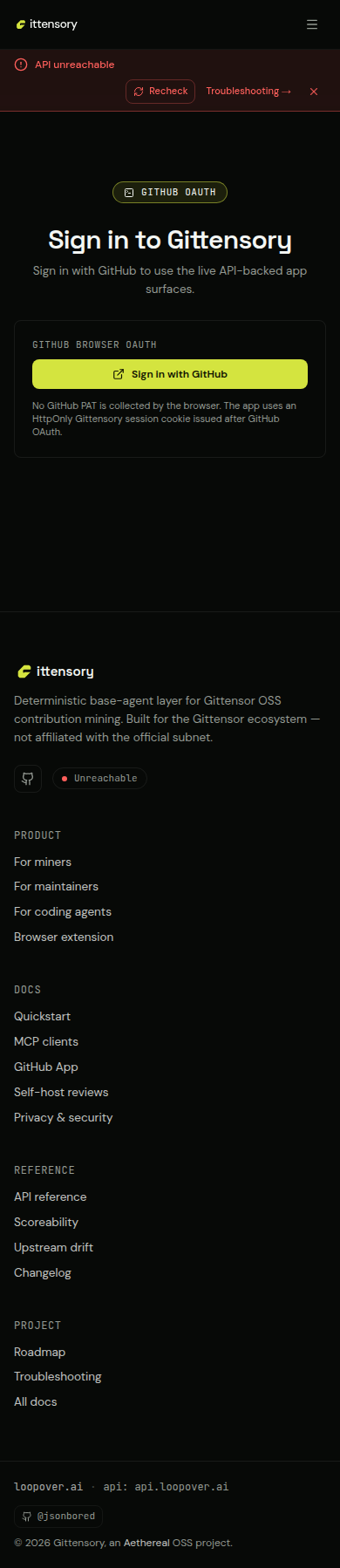

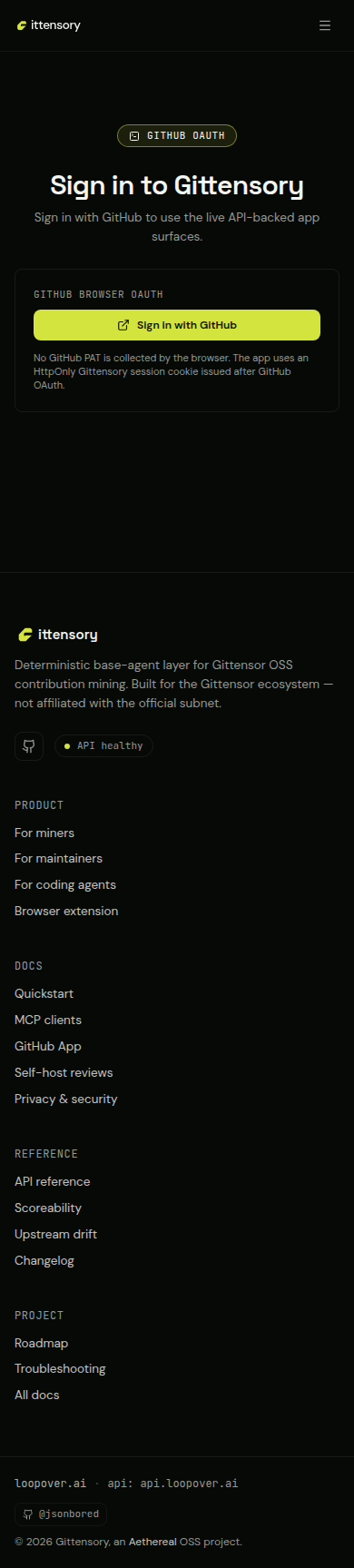

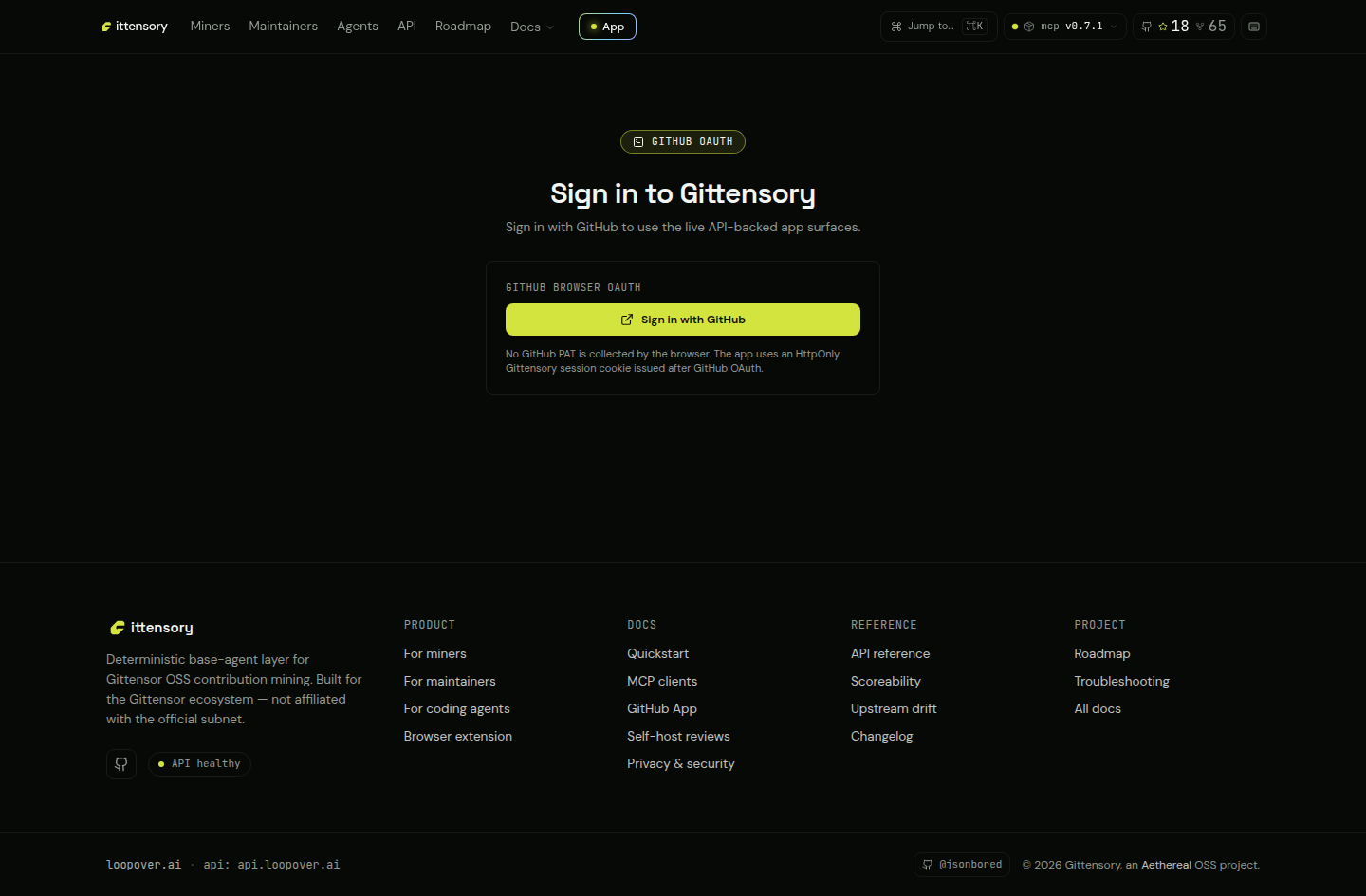

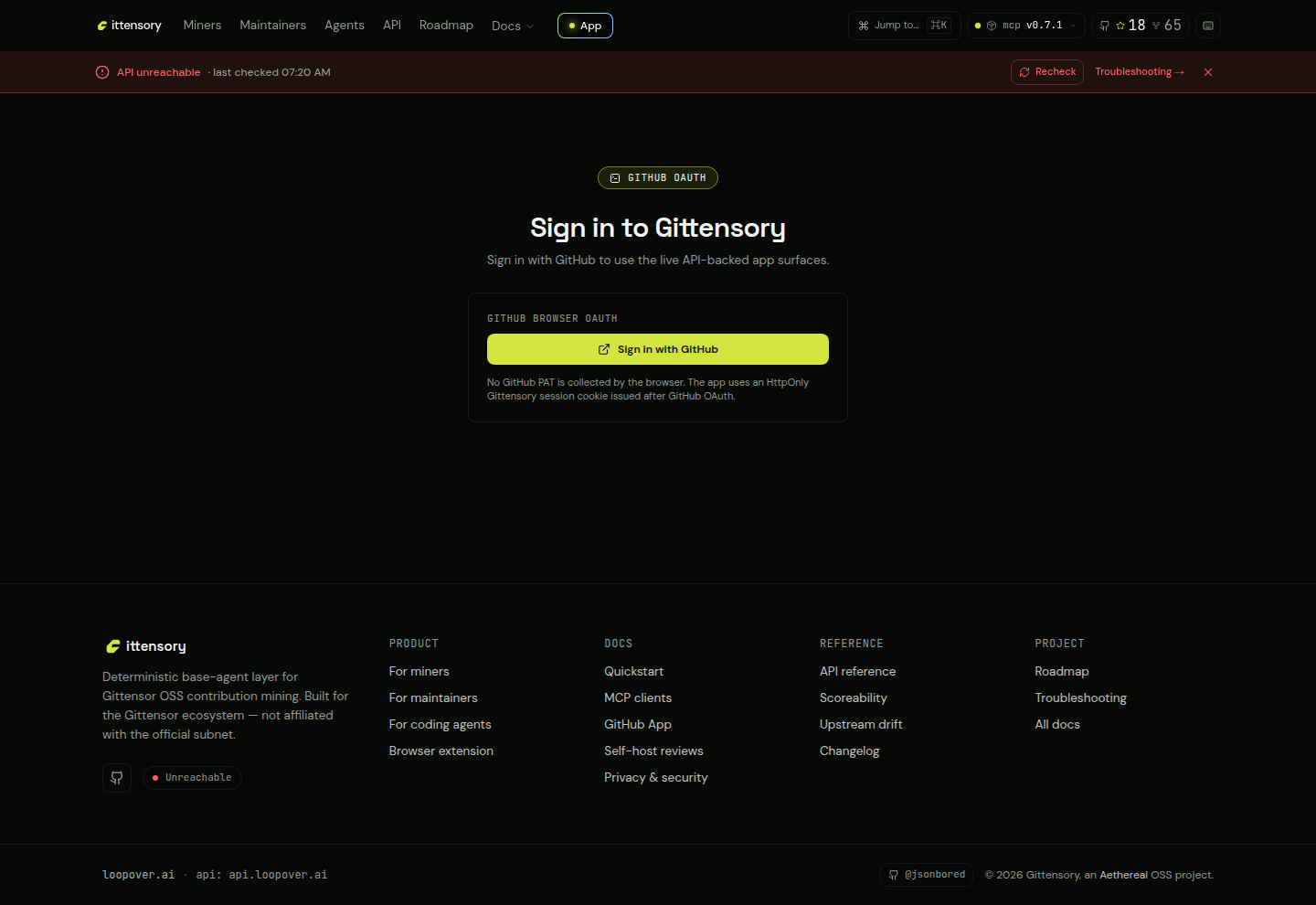

Route	Viewport	Before (production)	After (this PR's preview)	Diff
/app/runs	desktop			—
/app/runs	mobile			—

Click any thumbnail to open the full-size screenshot. Before = production · After = this PR's preview deploy.
